EnglishWT9932P4-MINI-A1 Getting Started Guide
2025-11-13
Update history
| Date | Version | Author | Update content |
|---|---|---|---|
| 2025-11-13 | 1.0.0 | Pail | Initial document release |
This tutorial introduces how to use the example projects provided on Wireless-Tag's GitHub for the WT9932P4-MINI-A1 development board, including MIPI-DSI display, camera, and more.
- 🎯 Smartphone-style UI — based on the ESP-Brookesia framework
- 📱 Multiple applications — calculator, camera app
- 🤖 AI vision features — face detection, pedestrian detection
- 🖥️ High-definition display — supports MIPI-DSI interface screens
- 📷 Camera support — 1280×960 resolution camera
1. Hardware Preparation
- Development Board: WT9932P4-MINI-A1
- Display: MIPI-DSI Display (EK79007)
- Camera: OV5647

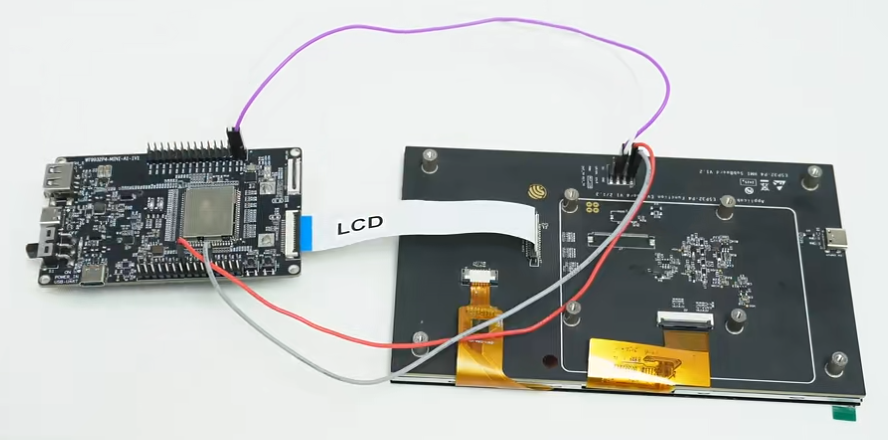

MIPI-DSI display connection:
| LCD Display | WT9932P4-MINI-A1 |
|---|---|
| MIPI FPC Cable | MIPI FPC Connector |
| LCD RST Pin | J5 Header GPIO27 |
| PWM Pin | J5 Header GPIO26 |
| 5V Pin | J6 Header VCC_5V |
| GND Pin | J6 Header GND |
2. Install ESP-IDF
Please follow the official documentation to install ESP-IDF v5.5 (commit: cbe9388f45dd8f33fc560c9727d429e8e107d476) or the latest version:
3. Clone the Project
git clone <repository_url>
cd phone_wt9932p4_mini_a1
4. Configure Environment Variables
. ${IDF_PATH}/export.sh
5. Install Project Dependencies
# Install managed component dependencies
idf.py reconfigure
6. Build and Flash
# Configure the project
idf.py menuconfig
# Build the project
idf.py build
# Flash to device
idf.py flash
# View serial output
idf.py monitor
7. Log Output
